With the concepts we learned in the previous chapters, lets write our first Playwright test.
To get started let's create a new spec file. Note that from here on all the commands will be executed at the playwright-tests directory and not at the root of the repository.
Before writing the tests, let's observe the actual UI. As mentioned in the locators chapter, data-testid is the most resilient selector to use while writing the tests. We can find the apt selectors to be used in the Playwright tests in two ways.
Find selectors using the VSCode extension
If you have installed the VSCode extension as mentioned in the Modes of Executing Tests chapter then using the pick locator tool is the most efficient way to get the best locator. Let's use this tool to observe the elements on the Login page and find the best selector.

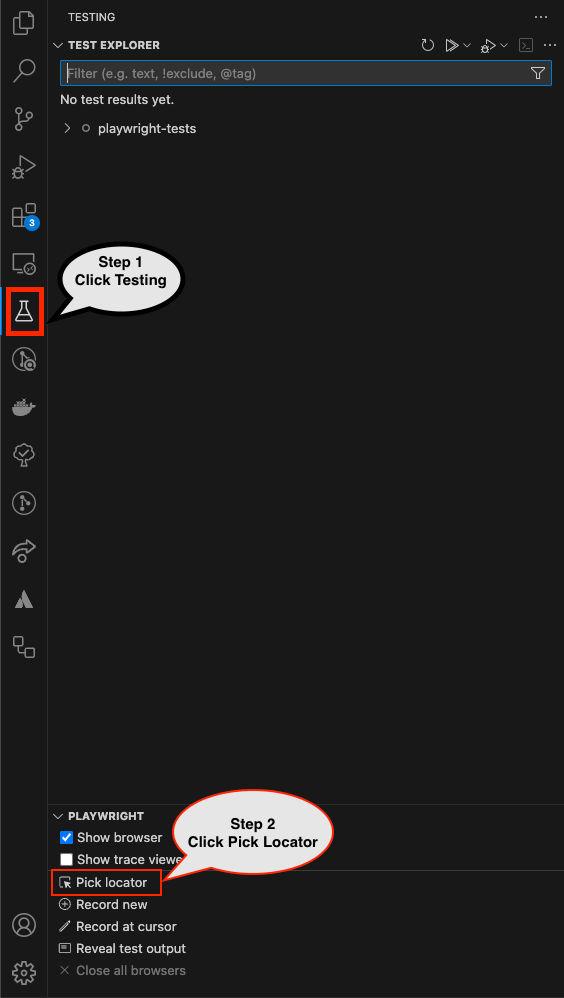

Step 1: Open the Pick Locator tool from the Testing extension in VSCode
Open the Playwright Testing extension and click on the Pick Locator tool.
Step 2: Visit the site where we want to find the selectors
In the locator tool, go to the url localhost:3000. This opens the login page of granite.
Step 3: Use the tool to find the best selector
On the login page hover on the various elements to find the accurate selectors for each of them.

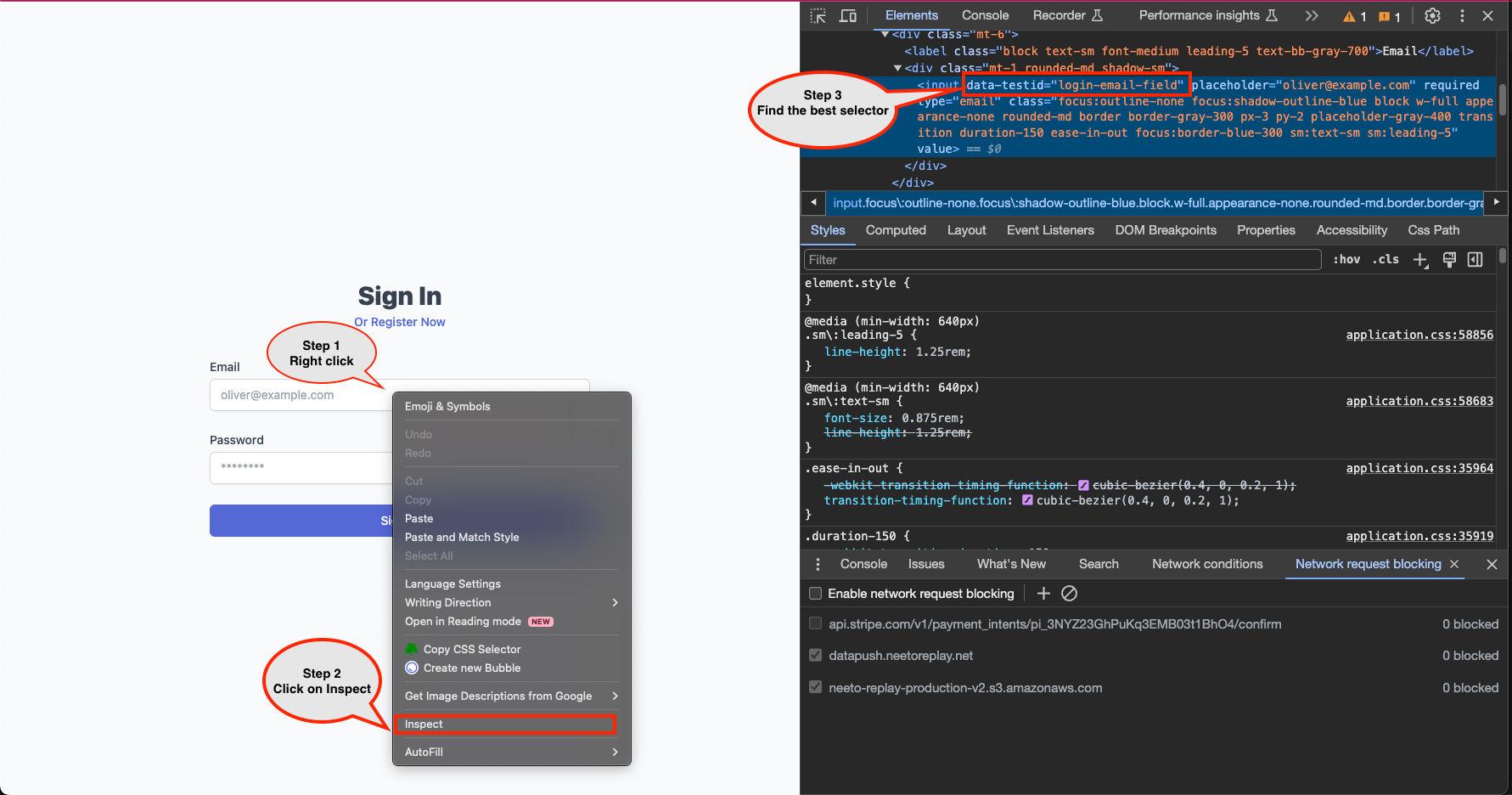

Find selectors using the browser DevTools Inspect tool
In case the Playwright plugin cannot be used, we can use the browser devtools to find the element.
Step 1: Open the site in a browser
Open a new browser tab and visit localhost:3000. This opens the login page to granite.
Step 2: Open the DevTools window
Right click on the element and choose the Inspect element option. On the DevTools inspect window find the tag of the element we want the selector for.
Step 3: Use the labels to find the best selector
In the tag for the element, find the best label available for using as a selector.
Figuring out the steps to be done for the test
Now that we know how to find the selectors, we should figure out the steps we should perform in order to login. For this page, it would be as follows.
- Enter the email
- Enter the password
- Click on the
Login button
- Confirm the username in navbar
- Confirm the
LogOut button in navbar
Writing the tests
Now that we have the steps figured out let's write the tests.
In this test we have used two action methods.
locator.fill(): Focuses the element and triggers an input event with the entered text.locator.click(): Triggers a mouse left click on the element.
Playwright provides an assortment of actions for the most commonly used user events. The detailed explanation for each action can be found here.
We are also doing an assertion here. The toBeVisible assertion makes sure that the element is present on the dom and is visible to the user after the styles have been applied. There are a lot of assertions that can be used in different scenarios which can be found here.
Now that we have written the tests lets execute them by the following command.
Great! All tests should be passing. Now let's commit the code.
