In the previous chapter, we delved into the concept of transactions to enforce the integrity of the database and guard the data against program errors or database breakdowns. Transactions ensure that a given set of operations is successful when all the operations constituting the transaction are executed successfully. If any operation within a transaction fails, the entire transaction is rolled back, preventing partial or inconsistent updates.
Another critical challenge that comes in the way of maintaining the consistency and integrity of the database is parallel transactions. Parallel transactions involve the concurrent execution of multiple transactions on a database system, allowing for improved performance and efficiency. However, when various transactions attempt to modify the same database record concurrently, the result of one transaction may override the outcome of the other, resulting in data inconsistency.
By simulating a scenario, let's understand the impact of parallel transactions on data integrity.
First, generate an Account model:
Replace the content of the generated migration file with the code given below to create an accounts table with name and balance fields:
Run the migration to add accounts table:
Now, open the rails console:
Create a sample record to accounts table:
Let's simulate the situation of two users/processes trying to withdraw an amount from the above account simultaneously. Open the rails console in two terminal tabs for that.
Define a function that withdraws a given amount from the account with the name "Oliver":
We have called the sleep method to simulate the condition of parallel transactions. It introduces a slight delay between read and write operations.

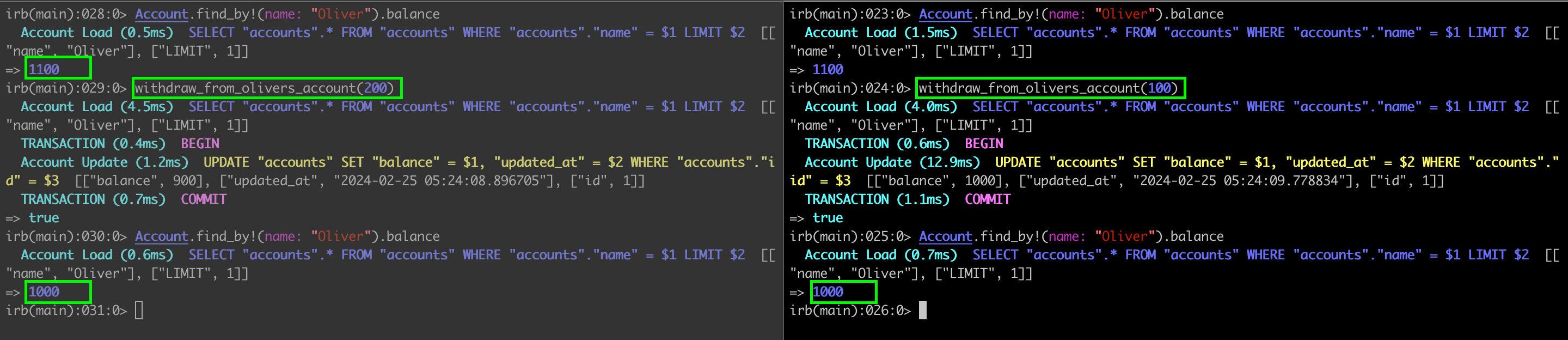

Copy the above withdraw_from_olivers_account function into each of the irb consoles. Now, call the function from both consoles. Initially, we have set the balance in Oliver's account as 1100. Note the balance after the execution of the above function:
Despite executing the withdraw_from_olivers_account function twice, one with 200 as the amount and the other with 100, only the latter withdrawal of 100 is reflected in the account balance.
This occurrence can be attributed to the concurrent execution of both processes, which independently loaded the database record and performed the withdrawal operation based on the retrieved balance. Due to the isolated nature of the transaction, each process is unaware of the change made by the other process. Consequently, each process wrote its calculated balance value back to the database without considering the modifications made by the other process. As a result, the outcome mirrored the effect of the last executed update: the withdrawal of 100.
Database locks come as a solution for the above issue. A database lock is a mechanism used in database management systems to control access to a specific piece of data or a database resource, ensuring that only one transaction can modify or access it at a time. Locking helps maintain data integrity and consistency by preventing multiple transactions from simultaneously making conflicting changes to the same data, which could lead to data corruption or inaccuracies.
Rails provides two ways to implement locking in a database: Optimistic and Pessimistic locking. Let's understand each of them in detail.
Optimistic locking
Optimistic locking assumes that conflicts are rare and allows multiple processes to access the same record for edits.
You can implement optimistic locking by adding a lock_version column to the Active Record that requires safeguarding against concurrent access. Each update to the record increments the lock_version column. Before saving the changes to a record in the database, it checks whether another process has changed the record by looking at the lock_version field. If the value of lock_version has been updated, it will raise an ActiveRecord::StaleObjectError exception and ignore the update.
Let's apply the knowledge of optimistic locking by adding the lock_version field to the accounts table:
Replace the content of the generated migration file with the code below:
The :lock_version column should have a not-null constraint and a default value of 0.

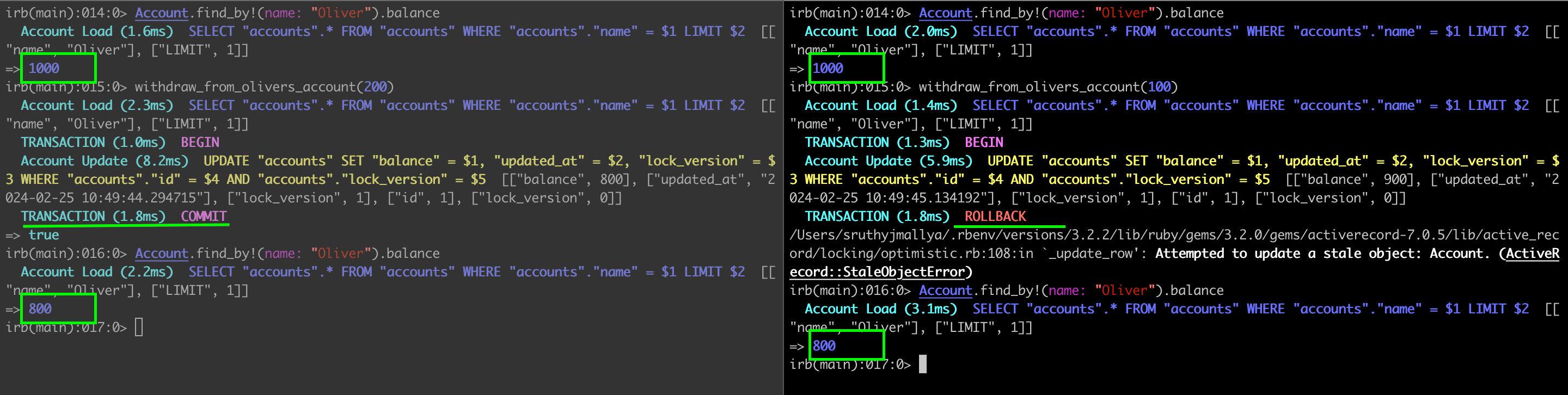

Now, let's try running the withdraw_from_olivers_account function in two irb consoles in parallel, as we did earlier:
You can see that first transaction succeeds by updating the balance field and the other one fails with ActiveRecord::StaleObjectError exception.
Optimistic locking can only identify conflicts during parallel transactions and trigger an exception when a conflict arises. We are responsible for handling the exception and addressing the conflict based on the business logic.
You can override the name of the lock_version column, by setting the locking_column class attribute:
Pessimistic locking
Pessimistic locking assumes that conflicts are likely and transactions must protect the data they access. Pessimistic locking ensures that only one process can access a record. It is based on the row-level locking in SQL.
Rails provides the Active Record methods lock and with_lock to implement pessimistic locking.
Let's update the withdraw_from_olivers_account function to utilize a pessimistic lock:
In the above code, we have chained the find_by! method with lock to obtain an exclusive lock on the Account record named "Oliver". The lock acquired using the lock method is held until the transaction is committed or rolled back.
Alternatively, you can start a transaction and acquire the lock in one go by calling with_lock with a block:
The with_lock method wraps the passed block in a transaction, making the code more readable when executing a series of operations.

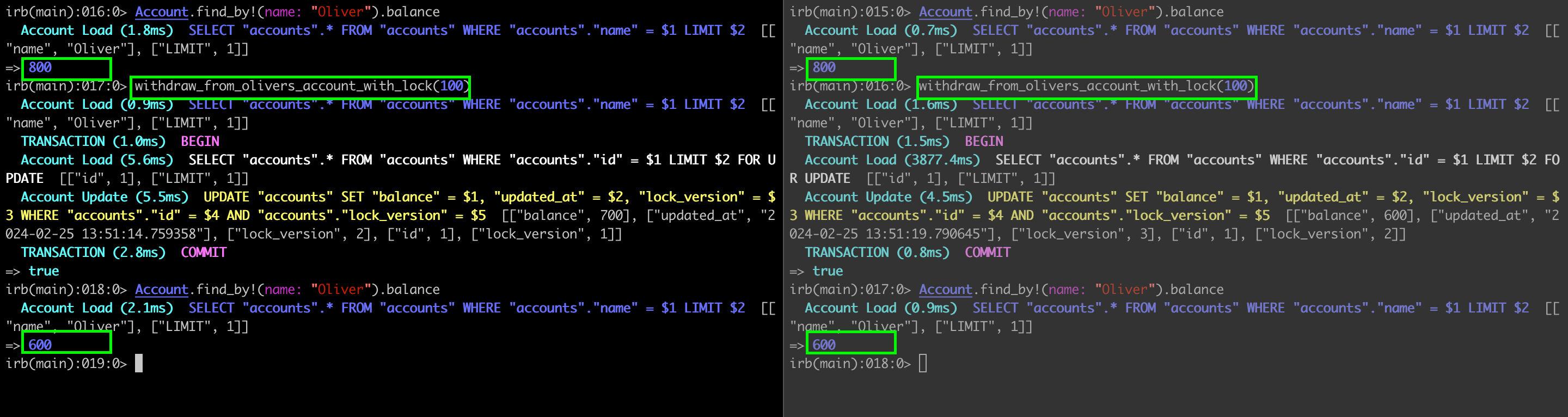

Copy the above withdraw_from_olivers_account_with_lock function into each of the irb consoles and run the function in parallel as we did before:
As evident from the output, the final value of balance includes the outcomes of both transactions.
When two transactions try to update the given row, one acquires the lock and performs the update. The other transaction is blocked until the lock gets released. Once the lock is released, the second transaction reloads the object and acquires the lock to perform the updates.
The lock and with_lock methods also accept an optional locking clause parameter to use a database-specific locking clause such as ‘LOCK IN SHARE MODE’ or ‘FOR UPDATE NOWAIT’. By default, the locking clause is “FOR UPDATE”.
You can refer to the following documentation for database-specific information on row locking:
The following blog by BigBinary is also a great read regarding this topic:
Optimistic vs Pessimistic locking
| Optimistic Locking | Pessimistic Locking |
|---|
| Assumes that conflicts are rare, so allows multiple transactions to read and modify data concurrently. | Assumes conflicts are common, so locks data to prevent concurrent access, allowing only one transaction at a time. |
| No locks on the data during reads; a check is performed during updates to ensure no conflicting changes occurred since the read. | Acquires locks on the data during reads, preventing other transactions from accessing the same data until the lock is released. |
| Better concurrency as multiple transactions can proceed without waiting for locks. | Lower concurrency, as transactions may need to wait for locks held by others. |
| Generally better performance under low contention scenarios. | Performance may suffer under high contention scenarios due to increased locking and waiting. |
| May require more complex conflict resolution strategies | Simpler to implement and understand but may require careful management of locks to avoid deadlocks. |
Testing parallel transactions
In Rails, test cases are wrapped in a database transaction, which means that the changes made to the database in each test case are rolled back after the test completes. This ensures that each test case is isolated and independent of others.
However, this transactional nature of tests can result in unexpected behaviour while testing parallel transactions.
Let's understand this by writing a test for the parallel execution of the withdraw_from_olivers_account_with_lock function.
For demonstration, we will add the withdraw_from_olivers_account_with_lock function within the model test file account_test.rb:
To simulate concurrent transactions and test how the system behaves when parallel transactions are updating the account balance, we may use threads as shown below:
In the above code, we are creating three threads which invoke the withdraw_from_olivers_account_with_lock function. The threads array stores the instances of threads we have created, which is then used to call the join method to wait for the threads to finish their execution before proceeding to the next line of code. Finally, we check if the resulting balance matches the expected value 700.
However, if you run the test, you will notice that the test fails.
As we discussed at the beginning of the section, tests in rails are wrapped inside transactions. As a result, the transactions initiated by each thread will be nested under the test transaction. These transactions can block each other, and the test will not work as expected.
To overcome this issue while testing parallel transactions, you can turn off transactions in the test case class by setting self.use_transactional_tests = false:
With disabled transactional tests, you must clean up any data created inside tests, as changes are not automatically rolled back after the test is complete.
You can use the DatabaseCleaner gem for this purpose:
We've opted for the DatabaseCleaner.strategy = :truncation to override the default transaction strategy with truncation of the database tables after each test using the DatabaseCleaner gem. The truncation strategy allows the persistence of changes made by one thread, ensuring visibility across other threads.
You will learn about the usage of the DatabaseCleaner gem and various database cleaning strategies in the in-depth chapter Database cleaning and strategies later.
The changes we made to the files were for demonstration only. Let's roll back the transactions and revert the changes.
