We had discussed about the limitations of the PDF report generation feature in
the last chapter. In this chapter we will fix those limitations by making use of
the Active Storage module. More than that, in this chapter we will also figure
out a way to improve the UX pertaining to the report generation by utilizing
Action Cable module and showing a progress bar for the report generation process
in the UI.
Features
Let's use Active Storage and Action Cable modules for generating the PDF report
with progress notifications and to store it in Google Cloud storage.
-
We will add Active Storage so that we can store the PDF file on a dedicated
file storage service like Google cloud storage. Using this approach we can
make the PDF report feature work in the deployed Heroku app.
-
We will add Action Cable so that we can send live notifications to the client
and point out the progress of the PDF report generation process.
-

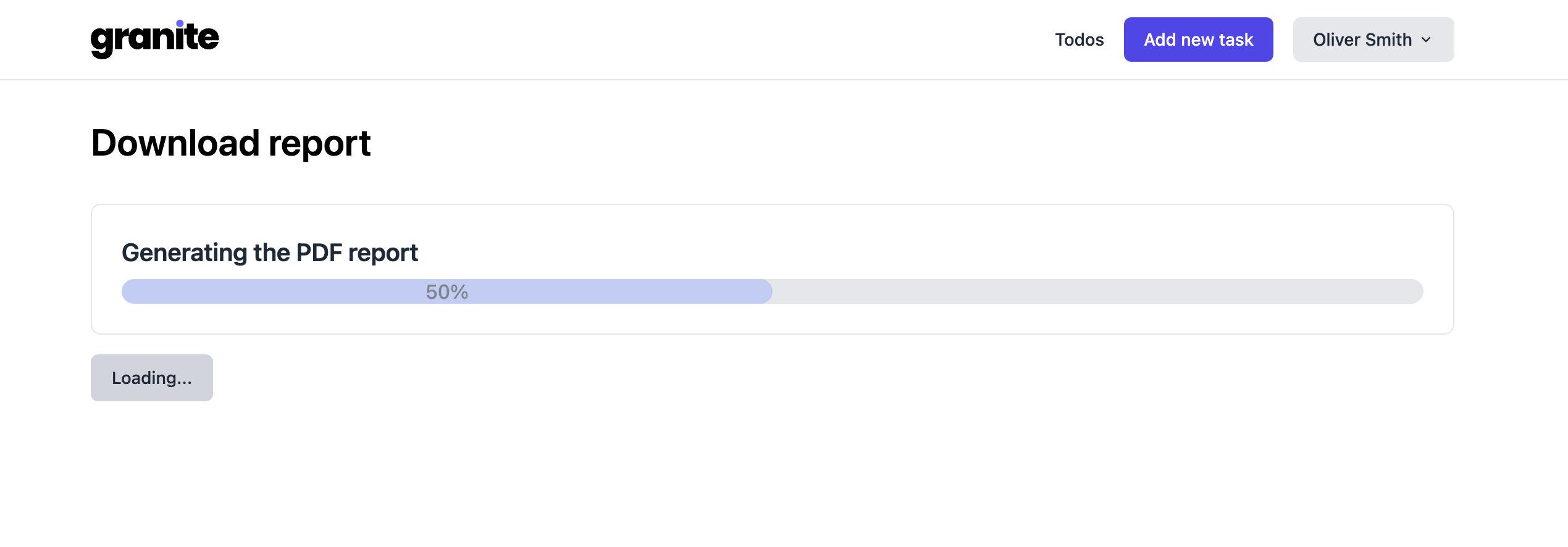

We will add a progress bar in the UI to show the completion of the PDF report
generation.
Technical design
To implement this feature we need to introduce the following changes:
On the backend
-
Setup Active Storage in the project and initialize Google Cloud storage
service to upload the PDF report.
-
Update the config and secrets file to add the cloud service with Active
Storage.
-
Attach the report to a user so that we can retrieve the reports associated
with a user after generating it and uploading it to the cloud service.
-
Add Connection, Channel, and ReportDownloadChannel classes to setup the
Action Cable.
-
Update the reports_job to broadcast notification messages at different
stages of PDF generation using Action Cable sockets.
On the frontend
-
Add a ProgressBar component which will show the current progress of the PDF
generation process.
-
Add a consumer and a reportDownloadChannel to accept the notification
messages sent by Action Cable from backend.
-
Update the DownloadReport component to show the progress bar, notification
messages, and download button.
What is Active Storage?
Active Storage facilitates uploading files to cloud storage services like Google
cloud storage, Amazon S3, etc. Using Active Storage we can upload files and
attach them to Active Record objects.
Active Storage requires certain third-party tools for extended functionality.
Like libvips is required for image processing and analysis. ffmpeg software
is required by Active Storage for video previews. Similarly, if we need to
interact with Google Cloud storage, then we'd have to install the corresponding
API providing gem for the same.
Active Storage uses three tables that are active_storage_blobs,
active_storage_variant_records, and active_storage_attachments.
Run the following command to generate a migration that creates these tables:
If you are using UUIDs instead of integers as the primary key on your models,
then you will have to change the column type of
active_storage_attachments.record_id and active_storage_variant_records.id
in the generated migration accordingly. This can be skipped if you set
Rails.application.config.generators { |g| g.orm :active_record, primary_key_type: :uuid }
in a config file.
For instance, consider you are using UUIDs for your models and in the generated
migration file for Active Storage, the column type of record_id is bigint as
given below.
In this case, you should change the type of record_id to uuid as follows:
Similarly, you should also change the type of id field to uuid for the table
active_storage_variant_records.
Now run the migration to reflect the changes in database, like this:
So we have successfully added Active Storage to our project. Let's integrate a
cloud service with Active Storage.
Initialize Google Cloud bucket
For Google cloud storage, add the google-cloud-storage gem in Gemfile, like
so:
Then install the newly added gem, like this:
Setup the Google cloud storage bucket as follows:
-
Go to https://cloud.google.com/storage
-
Signup if you hadn't created an account before. Once you signup, login with
your email, and enter the required details to setup the account.
-
After signing with the account, go to the console and create a new project
called Granite.
-

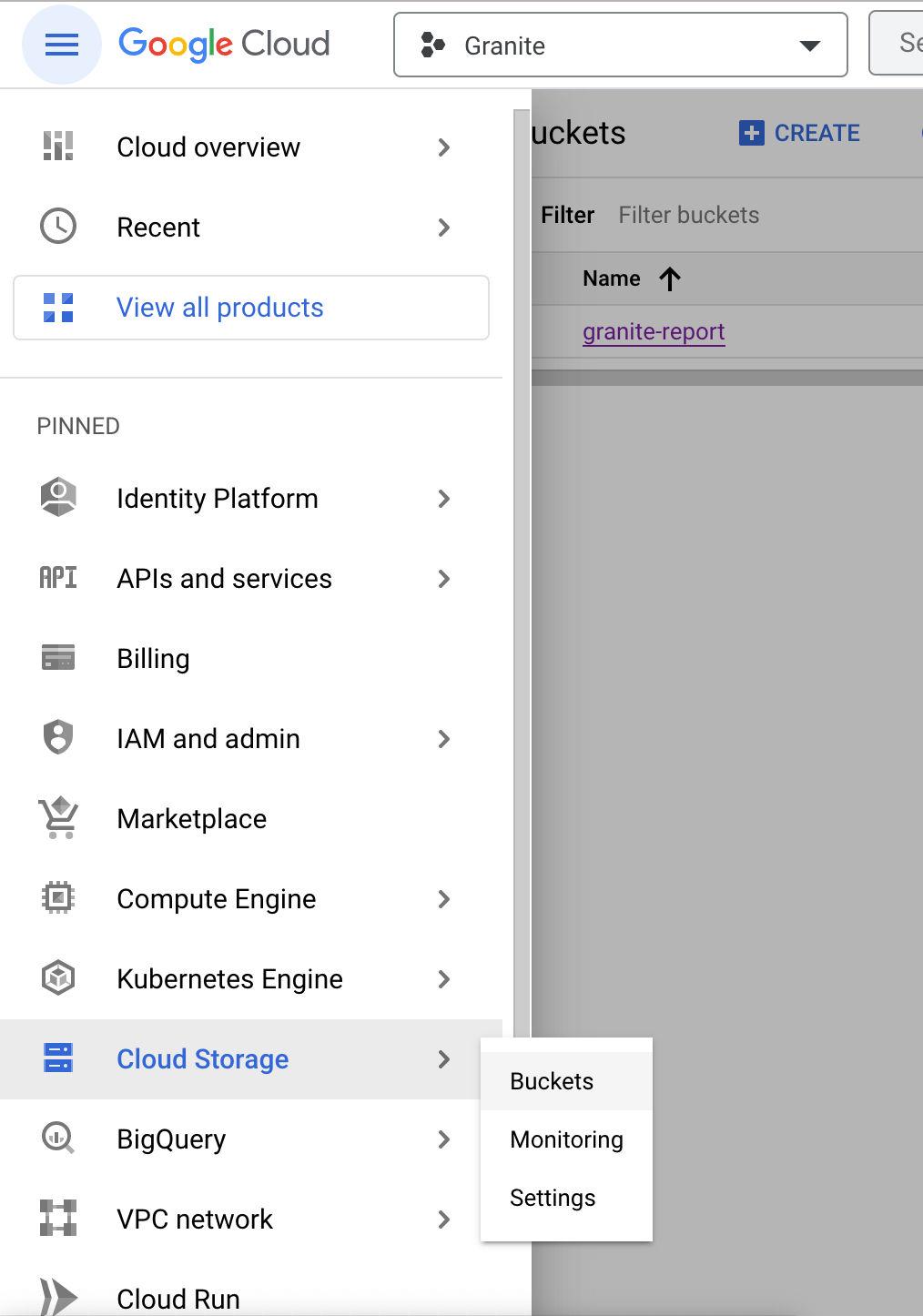

Select the project and go to the Buckets option using the side menu, like
this:
- Click on create button and add the bucket with
granite-report as the name.
Select the default options for rest of the steps.
We have initialized the Google cloud storage bucket. We also need a key file to
access the bucket storage from our local machine.
Generate the key file as follows:

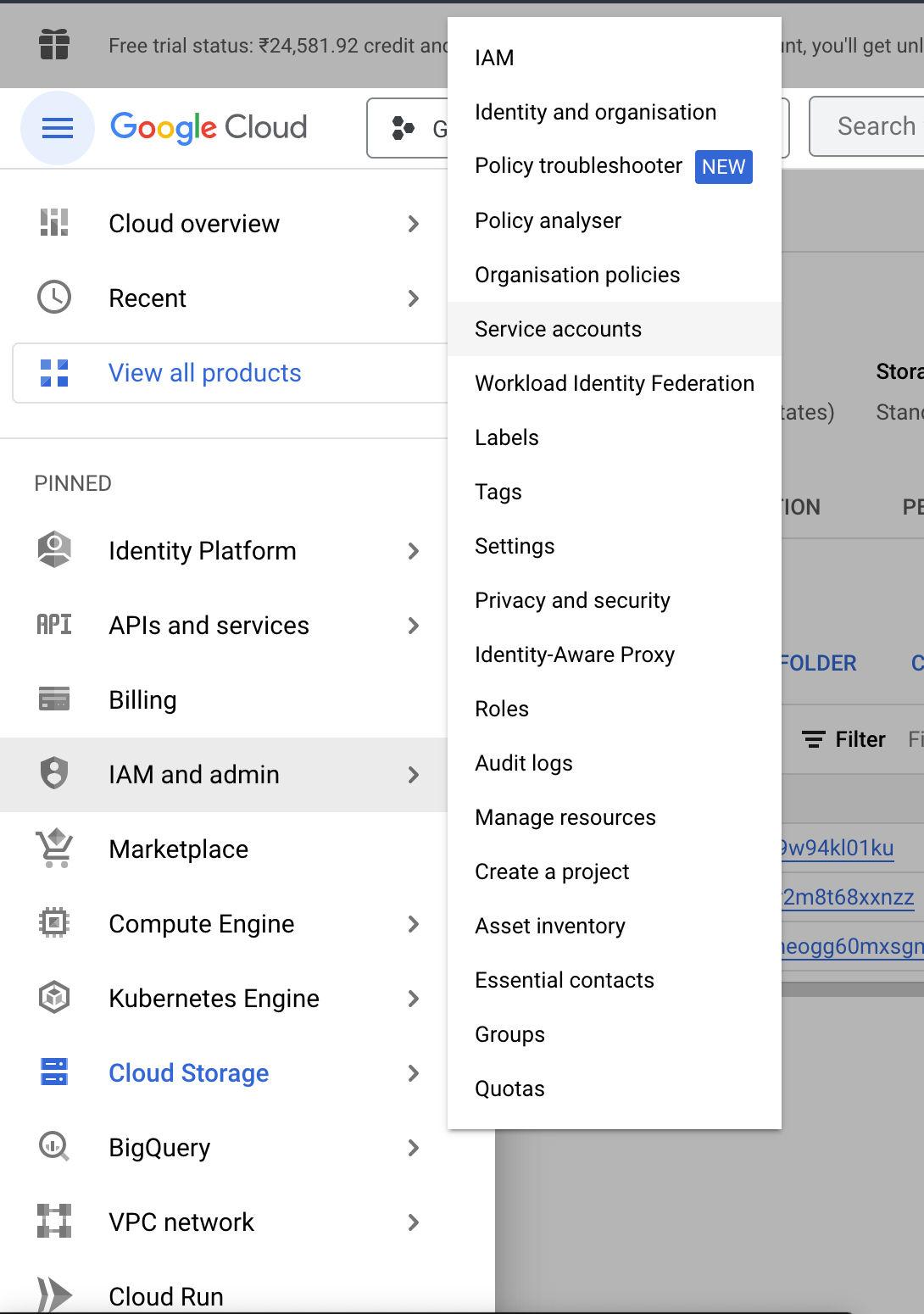

- Go to the
IAM and admin > Service accounts option using sidebar menu as
shown below:
-

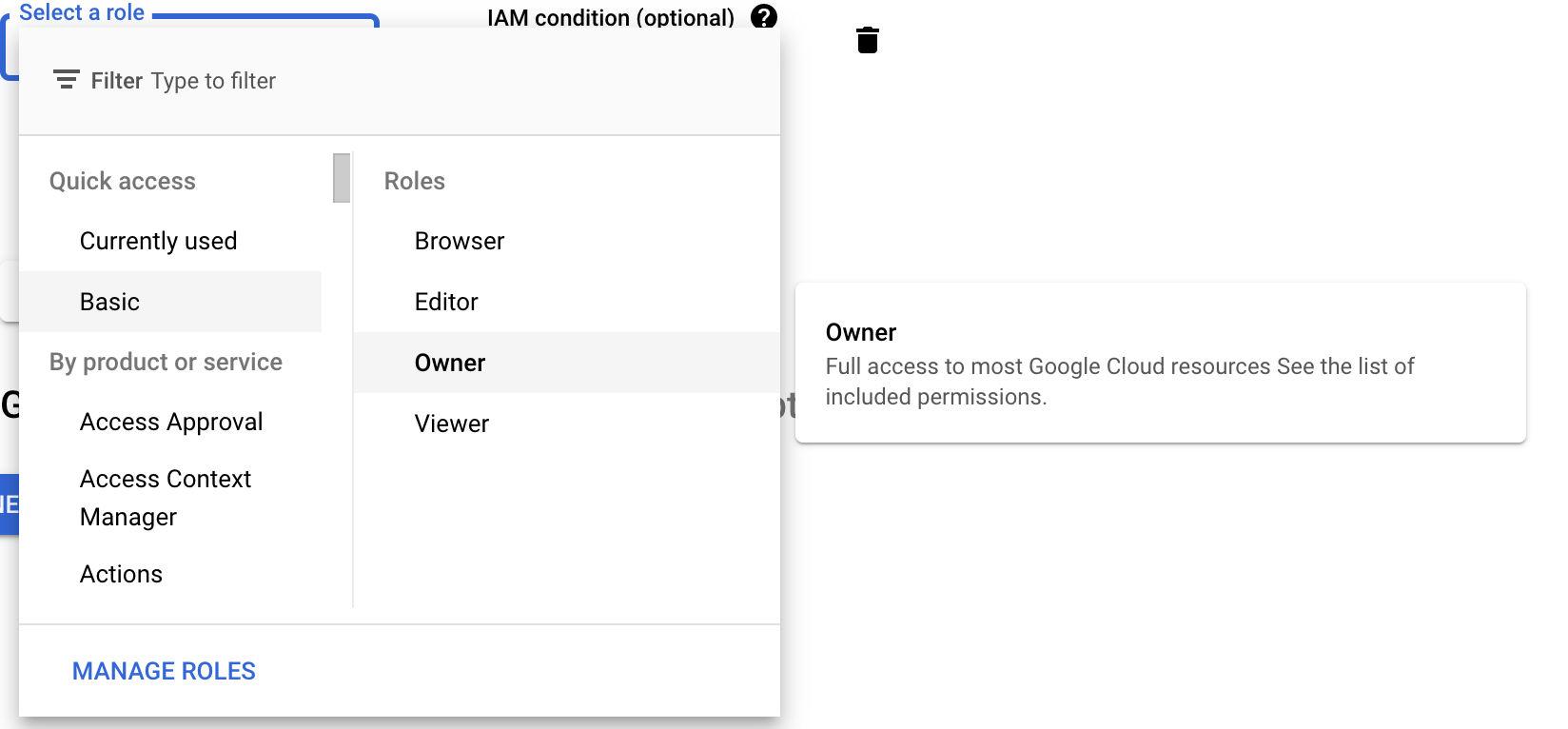

Then click on Continue. We can skip the last option and click on Done.
-
A new service account is created in the table. Now click on the actions button
for the newly created account and select the Manage key option.
-
Then click on Add key > Create new key option. Select the JSON option and
click on Create button. Your service account key will be downloaded to say
the "Downloads" folder.
Handle env variables
We have initialized the Google cloud storage bucket and we also have the key
file. It's time to add this service to Active Storage.
Let's first handle the env variables.
It's a common standard across most projects to store the ENV variables in .env
files. In order to handle the .env files, we need to add a gem. Let's add the
dotenv gem, at the end of Gemfile, like this:
Install the newly added gem, like this:
Now add the following lines in application.rb to load the environment
variables from dotenv or more accurately the .env files:
Usually, in the production environment we set the ENV variables in Heroku
itself. Otherwise anyone with access to the repository, will be able to perform
drastic operations across the production env of multiple platforms, ranging from
GCS to Heroku. But given that granite is more or less a test application, and
for easiness sake, let's add the ENV variables for production locally.
Update the .gitignore file in the root directory to remove the .env file
from it so that the .env file can be uploaded to Github and Heroku can load
env variables using it.
Remove the below mentioned line from .gitignore file:
Once a change is made to .gitignore file we should immediately stage and
commit that change.
So let's stage and commit the .gitignore file, like this:
Now, create a .env file at the root of the project, like this:
Add the following keys to the .env file. Provide each key with the
corresponding values mentioned in the key file that we had previously downloaded
from Google Cloud.
Please note that the value of private_key contains newline escape character
that is \n so we have to use the double quotes, like this:
We don't need to wrap any other ENV variables in double quotes, other than the
one mentioned above.
Now we have added the env variables, let's use these env variables in our
project.
Open the secrets.yml file and add the highlighted lines, like this:
Update the config/storage.yml file like this:
In the above mentioned storage.yml file, we are specifying to use the disk
storage for local and test environment. And we have added the google service
with all the required configuration which will be used in the production
environment.
The String dump method
In the above mentioned storage.yml file, we have used a method called dump
for the private_key key. The dump method is a String class method which
returns the string with all non-printing characters replaced by \xHH notation
and all special characters escaped. This method helps in parsing the private key
which contains escape characters.
Always add env variables to secrets.yml
Phew! That's a lot of work to manage secrets but there are many advantages of
handling secrets using this approach. First of all, we are not exposing any of
our secrets to the outside world. We at BigBinary, use this secrets.yml to
load all the env variables. We don't use the env variables directly in the
application. We use env variables in the application through the secrets.yml
file. This makes the secrets.yml file the single source of truth for all the
env variables. If any key or env variable needs to be updated then we only have
to update it in the secrets.yml file only.
Add Active Storage
Let's update the user.rb file to associate the user with the PDF report, like
so:
The attached report is an Active Storage table.
Update the reports_job.rb file, like this:
After adding the report association in the user.rb file we can access the
report by using user.report. In the reports_job.rb file after generating
the PDF report, we are first checking if we already have a report file attached
by using current_user.report.attached?, where
attached?
is a method added by Active Storage.
If we have an old report file then as per our current business logic, we need to
first delete that file from the server using the method purge_later. The
purge_later method deletes the file via Active Job module in an async manner.
Then using the .attach() method we upload the file to the provider and then it
also attaches the file's reference to the current_user's object.
Update the download action in the reports_controller.rb file to send the
report's data and to also respond to cases where report file is not found, like
so:
The download method from Active Storage, downloads the file associated with
the report blob. If no block is given, the entire file is read into memory and
returned. That'll use a lot of RAM for very large files. If a block is given,
then the download is streamed and yielded in chunks. Here since our report file
is very small, we can directly invoke download without passing a block to it.
Now we are all set to verify whether Active Storage is working as expected. Go
to https://localhost:3000/tasks/report to check whether the file is getting
downloaded. Note that, right now the generated file will be stored in your local
file system by default. Meaning Active Storage won't be uploading any files to
Google Cloud. We will see how to ensure uploading to Google Cloud, in the next
section.
Updating environments to use 3rd party provider
To use the Google cloud service in the production environment, update the
production.rb file, like this:
The next code block needn't be added in granite. To test the Google cloud
service in local environment we can update the development.rb file, like this:
Before pushing the code to production, it's always a good idea to test the
provider by setting the above configuration in development.rb. But make sure
to revert that change once you test it. Otherwise we'd end up using the free
credits and storage from the provider, and thus going over limit.
Please note that even if the setup works perfectly in the development environment, it may not function as expected in the production environment, especially because you are using the free version of the deployment platform. This can introduce limitations like restricted access to certain resources or other constraints specific to the free tier.
WebSockets vs Polling
Developers often stumble upon cases where real-time communication is required
between a client and server. This includes applications that require instant
updates, such as chat applications, real-time multiplayer games, and financial
trading platforms.
Polling and WebSockets are two different approaches commonly used to achieve
real-time communication between a client and a server.
Polling involves the client making repeated HTTP requests to the server at a
specified interval to check for updates. This approach can work for simple
applications, but it can be inefficient because it generates a lot of
unnecessary network traffic. This can lead to high latency and increased server
load, which can be problematic for more complex and demanding applications.
WebSockets, on the other hand, allow for a persistent, bi-directional connection
between a client and a server, enabling real-time communication without the need
for repeated requests. This approach is more efficient than polling because it
reduces network overhead and server load, resulting in lower latency and
improved performance. WebSockets also allow faster and more reliable data
transfer.
Let us explore the two approaches from the granite point of view. In our
application, the user submits a request for the PDF report, and the server
processes the PDF, which may take some time. If we employ the polling approach,
the user's browser would repeatedly send requests to the server at a specified
interval to check the progress of the PDF processing. This can lead to increased
network traffic and server load, and it may also cause the user to experience
delays and decreased performance.
In contrast, if WebSockets are used, the server can establish a persistent
connection with the user's browser and send progress notifications in real-time.
This allows the user to receive updates on the processing progress without the
need for repeated requests. The user can also receive notifications as soon as
they become available, resulting in a faster and more responsive user
experience.
Action Cable is a feature of the Ruby on Rails web framework that provides a way
to integrate WebSockets into Rails applications. We will learn more about Action
cables in the next section.
What is Action Cable?
Action Cable seamlessly integrates
WebSockets and allows for real-time
features to be written in Ruby in the same style and form as the rest of our
Rails application, while still being performant and scalable. Using Action Cable
we can send the progress notifications to the user while processing the PDF.
Before moving forward let's first understand more about some basic terminologies
which we will be using throughout the chapter.
-
Connections: It is the foundation of the client-server communication. A single
Action Cable server can handle multiple connection instances and a single user
can have multiple connections or Websocket instances.
-
Consumer: The client of a WebSocket connection is called the consumer. In
Action Cable, the consumer is created by the client-side JavaScript framework.
-
Channel: Understand this by taking television channels as an example. Each
user or consumer can watch one or multiple channels to which they've
subscribed to.
-
Pub/Sub: Pub/Sub or Publish-Subscribe refers to a message queue paradigm where
senders of information (publishers), send data to an abstract class of
recipients (subscribers). As in a television channel, we can identify the
subscribed users using the connection number, Action Cable channel uses this
Pub/Sub to identify specific users subscribed to the channel.
Setup Action Cable to send live notifications
Create the channels and application_cable directories, like this:
Create the connection.rb file, like this:
Add the following code in the connection.rb file we created in the last step:
We are verifying the user who is trying to make the connection using their
email and auth_token. If the user is not found then we will reject the
connection request using the reject_unauthorized_connection.
Create a channel.rb file, like this:
Add the following lines in the channel.rb file:
The Channel class is currently empty because there aren't any data or
configurations that all channels need to inherit. But this class is more or less
like our application_controller.rb class from which all other controllers
inherit.
Let's create a channel for sending report generations's notification that is
report_download_channel.rb, like this:
Add the following code in the report_download_channel.rb file:
When the user subscribes to the ReportDownloadChannel, user will receive the
data that is streamed with the given pubsub_token. We will discuss more about
pubsub_token later in this chapter
Move hardcoded messages to translations file
Now let's add some notification messages to the en.yml file, like this:
Update the reports_job.rb file to send the live notifications about PDF
file generation, like this:
We are broadcasting the messages by using the user_id as pubsub_token. If
the user uses the same pubsub_token, that is user_id, while connecting to
the channel, the broadcasted messages will be received by the user.
Update the create action from the reports_controller.rb, like this:
As you can see in the above code block, we have removed the render_notice
method from the create action because we don't want the Toastr notifications
to show up in the frontend side. We will be showing the progress notification
using Action Cable. We could've neglected the Toastr and moved on. But we
decided to remove it. That's the right mindset we need to build. Like having a
Toastr along with a progress notification just bloats the UI and tarnishes the
UX. Too many notifications is not necessary. If the consumer is already made
aware of what's happening, then we don't need to add anything more on top of
that.
Also, remove the report_path method from the reports_controller.rb because
we have delegated the job of handling generated files to Active Storage.
Update the config/cable.yml file to make Action Cable work, like this:
Setting up Action Cable in the frontend side
So we are done with the backend part. Let's start making changes in the frontend
side.
If you have a channels folder inside the app/javascript, then move it to the
app/javascript/src directory.
If there is no such folder then let's create one using the following command,
like this:
Create an index.js file if it doesn't already exist inside the
app/javascript/src/channels directory, like this:
Update the index.js file we just created, like this:
Now, let's create a consumer.js file inside the channels directory, like this:
Update the consumer.js file, like this:
In the above mentioned consumer.js file we have invoked a function from
actioncable called createConsumer which can create a consumer object through
which we can subscribe to different channels.
Now, let's add the channel in the frontend through which we can communicate with
the ReportDownloadChannel which we had built in the backend.
Create the reportDownloadChannel.js file, like this:
Add the following code in the reportDownloadChannel.js file:
Let's try to understand the subscribeToReportDownloadChannel function. This
function first creates a subscription to the ReportDownloadChannel for the
consumer object we have passed as props. While creating the subscription, a
pubsub_token carrying the value of userId is used to uniquely identify each
subscription to ReportDownloadChannel and transmit the correct data.
In the second argument of create method, we have two methods called
connected and received. As the name suggests the connected method is
invoked when a successful connection is made to the channel and the received
method will be invoked when some data is received by the channel.
Add alias for channels folder
Let's add the alias for the channels directory. Update the resolve.js file
like this:
Create progress animation using framer-motion library
Now we will be using two new packages that are file-saver to save the PDF file
and framer-motion to create the progress bar animation.
Install the file-saver and framer-motion like this:
Please note that we are utilizing version 6.5.1 of framer-motion. This is because starting from version 7, framer-motion requires a minimum supported version of react@18, whereas we are currently using react@17.
Now let's work on the progress bar. Create a file called ProgressBar.jsx in
the commons directory, like this:
Add the code in the ProgressBar.jsx, like this:
The ProgressBar component gets a prop called progress and according to the
value of progress, the width of a div increases and appears to us like a
progress bar.
Let's export the ProgressBar from commons/index.js file:
Now let's move on to the DownloadReport component. Fully update the
DownloadReport component like this:
That's a lot of changes. Let's summarize the working of the PDF report feature.
-
Let's start with the DownloadReport component. It has a state called
isLoading which is initially set to true and this disables the download
button. This component also creates a consumer object by invoking the
createConsumer function.
-
As soon as the DownloadReport component mounts it invokes the
subscribeToReportDownloadChannel function to make the consumer, that is the
current user, subscribe to the ReportDownloadChannel.
-
As soon as the connection with the ReportDownloadChannel is set up, the
generatePdf function is invoked which makes a request to the backend to
create the PDF report.
-
This report creation request starts the ReportsJob in the backend. Now,
this ReportsJob performs several operations like creation of the PDF
report, uploading the report to some 3rd party storage service using Active
Storage, and attaching the report to the user who requested the PDF report.
-
While creating the report, ReportsJob broadcasts different messages and
progress notifications using Action Cable. These broadcasted messages are
collected by the received method inside the
subscribeToReportDownloadChannel method in the frontend side.
-
The received method updates the broadcasted message and progress states
in the DownloadReport component and the same is reflected in the UI.
-
When the value of the progress state reaches 100 we enable the download
button by updating the isLoading state to false.
-
Now when the download button is clicked download action is invoked in the
ReportsController and the report's blob data is sent to the client. Then the
FileSaver library handles the report file's blob and downloads the blob as a
PDF file.
Testing Action Cable
Create a file called connection_test.rb, like this:
The test case names should be pretty self-explanatory of what we are testing
here.
Test the Action Cable functionalities with the current user by updating the code
in connection_test.rb file, like this:
Create a new file called report_download_channel_test.rb to test the
ReportDownloadChannel, like this:
Update the code in report_download_channel_test.rb file, like this:
Go to the http://localhost:3000/tasks/report and checkout the new PDF report
feature.
Let's commit the changes
References
For more details, please refer:
