40.Showing notifications

In this chapter we will add two new features. First feature is to display notification messages and second feature is to customize the HTTP requests using Axios interceptors.

Features

Our notification feature should work in the following manner:

Whenever an operation like creating a new task or deleting a task is performed, a notification message should be displayed which would let the user know of the result of the operation.
When the operation is successful, the notification should contain a success message and in case of a failure it should contain the error.
For success notifications, a checkbox icon should precede the message to denote a successful operation. Similarly in case of an error, there should be an alert icon. Small details like these can vastly improve the UI and UX of an application.
Notifications should always appear at the centre-bottom of our page as shown in the image attached below.
The notifications will be automatically shown upon getting a response from our server.

Technical design

To implement these features, we need the following:

A notification component, we will call it Toastr for reasons mentioned in the next section. This Toastr component will display the notification message when a new notification arrives.

Toastr component will be built using react-toastify library. Using react-toastify as a base will take care of a lot of low level implementation.
react-toastify will also take care of rendering the appropriate icon according to the notification type. It comes shipped with some default icons for each intent like say error, success, info etc.
A component which will act as a container for the notification messages. We will name it ToastrComponent.
We will create a file called storage.js in app/javascript/src/helpers. Inside storage.js, we will create helper functions called setToLocalStorage and getFromLocalStorage to set and get data from the LocalStorage.
API requests should contain authentication data by default. We shouldn't have to add authorization data every time we make a request.
We already have a setAuthHeaders function to set default authorization headers for all HTTP requests made using Axios, and we will invoke this function inside the App component when application mounts.

Authorization data is usually stored in browser's localStorage. We will use the storage helper functions to get authorization data from LocalStorage.
Rather than invoking the notification component by ourselves, we can delegate the job of raising a notification automatically based on the status of the response using the Axios interceptors.
Inside axios.js will create handleSuccessResponse, handleErrorResponse and registerIntercepts functions.
handleSuccessResponse and handleErrorResponse functions are the two callbacks that will be registered as the response handlers for Axios responses.
registerIntercepts function will register the handleSuccessResponse and handleErrorResponse functions with Axios interceptors to be called when a response is received.
We will export registerIntercepts inside the App component and call it from there when application mounts.

Creating a Toastr component

Yes. You read it right. We named it Toastr, so that it doesn't collide with other library components which has names like Toaster, Toasts etc.

So a Toastr component's purpose is to display notifications like say "Task completed", "Preparing download..." etc with an intent like success, error etc.

Don't confuse this with the spinner logic. It's not the same. You can think of this as a notification that you receive in your phone or alert messages in your browser. Let's see how this can be useful for us.

In a Rails API based application, we send successful JSON responses with key called notice and error notifications with key called error.

This is a convention we will be following while building this application. The notice and error keys will always contain the message that needs to be shown as a notification.

Let's see an example of a successful response sent with a notice key:

So when this response is received at the frontend side, we need to show a notification with an intent of success (since http status is ok or 200).

Let's also see an example of an error response with the error key:

When an error response is received at the frontend side, we need to show an error notification. That's pretty much the use case of a Toastr. Now let's actually create the component.

So the questions that you need ask yourself are:

Is this a React component? Yes. So we should name it with .jsx extension since it will contain jsx, obviously. This also helps with enhanced intellisense(we will get to it later).
Where should this file be created in our directory structure? Since this file is common for all other components, let's add this file in commons directory.
The directory name as well as component file name, should be in PascalCase. The same thing applies to the component naming.

Run the following commands to create the file:

To show the notifications, we need a base library which we can use and modify according to our requirements(remember the intents?). Thus, let's make use of the react-toastify package.

We are using this specific version of react-toastify because the latest one has some breaking changes. To know more details check the issue in the official react-toastify repo.

To make it work we need to add the CSS files associated with the react-toastify library in the Rails assets pipeline.

This is an important step, and you should remember this whenever you are adding a new JavaScript package. That is, you need to add the CSS files relevant to the package in the Rails assets pipeline.

Let's append the following lines to app/javascript/stylesheets/application.scss:

Awesome! Now we can use those packages and their styles, colors, transitions etc.

Sometimes these packages don't work as intended when we deploy the application to heroku. This is because Rails asset pipeline works slightly differently in the development environment and in the production environment.

Let's complete our Toastr component. Add the following code snippet to app/javascript/src/components/commons/Toastr.jsx:

Now, export Toastr from commons/index.js file:

Done. Now we have a Toastr component which we can actually use in our code. But the question is how do we effectively use it?

You must have noticed that the props passed to both success and error toast components are same. This is a clear violation of the DRY principle. We should avoid writing duplicate code.

Thus instead of passing the same props twice, we should declare a constant variable called TOASTR_OPTIONS which will store the props and we can pass this variable in place of the props.

First create a directory for constants inside app/javascript/src and then create a new file inside the app/javascript/src/constants directory using the following commands:

Inside app/javascript/src/constants/index.js, add the following lines of code:

Let's add a webpack alias for the constants directory. Append the following into the alias key in config/webpack/resolve.js:

Instead of declaring a variable inside Toastr.jsx itself we have declared the TOASTR_OPTIONS variable inside a separate file because this will allow us to import and reuse this variable in other files if required and if we need to update the Toastr props we will only need to make changes in one file.

It is considered a good practice to declare common constants and helper functions in a separate file for the following reasons:

Prevents clutter inside components and modules thus making them less bulky.
Doing so makes it convenient to import and reuse them in multiple places and prevents code duplication.
Classes, modules and functions should follow the single responsibility principle. Declaring constants and helper functions inside them defeats this purpose. And it also makes the code difficult to maintain and reuse.

Now, update app/javascript/src/components/commons/Toastr.jsx with the following lines of code:

Ideally, whenever we get a JSON response from our server, and if it contains the notice key or Rails errors object, then we need to show the notification.

But handling this step manually at each location where this response will be received, is a tedious task.

So let's make use of axios and the magical interceptors which it provides, to do this job for us. Let's see how it's done in the next section.

Before moving on to Axios interceptors, we should take a look at storing data like authorization token received through JSON responses in localStorage.

Storing data in localStorage

Let's create a helper function to store required data in localStorage and another helper function to fetch the stored data.

First we can create a directory for utility files and a file called storage.js in it:

Add the following to app/javascript/src/utils/storage.js:

We have added a try/catch block inside the getFromLocalStorage function so that we can catch any errors while reading or parsing data. If any error occurs it will return null.

Now let's add a webpack alias for these helpers. Append the following into the alias key in config/webpack/resolve.js:

We can now use these helpers over native local storage functions in our axios.js file. Thus replace local storage statements with the following highlighted lines in axios.js:

Using Axios interceptors

Axios interceptors are the middleware that we use between the client and the server, so that it intercepts all the requests, and we can apply custom functionality.

These are technically, functions that Axios calls for every request.

We can use interceptors to transform the request before Axios sends it, or transform the response before Axios returns the response to the code from where it was invoked.

We have already used a similar Axios functionality for setting the headers with each request and wrapped it a custom function called setAuthHeaders.

Similarly let's actually write the interceptors in our project specific axios.js file.

Open app/javascript/src/apis/axios.js and add the following lines of code.

Axios response callbacks

The handleSuccessResponse and handleErrorResponse functions are two of the most important Axios callbacks that help us in handling the responses.

The Rails server will send different HTTP statuses for different actions. Thus we should have a mechanism to notify the user of failures like say an authorization error or even notify the user one of their actions, like say creating a new task, was successful.

We could invoke Toastr messages in every component and make it show error or success responses manually. But that's redundant work.

The handleSuccessResponse callback will take care of handling success responses, which are usually having a status of 2xx.

The handleErrorResponse callback will take care of handling error responses, like say authorization error of status code 401 or server error of status code 500, etc. We also added custom logic like destroying the local storage keys which are used for authorization, if we receive an authorization error response.

Registering Axios interceptors

Phew! That was a lot of code, but there is one more step that we have to do.

We need to register these interceptors, as well as add a ToastContainer for the react-toastify popups to show up in.

Fully replace app/javascript/packs/application.js with the following content:

Fully replace app/javascript/src/App.jsx with the following content:

Here we have imported the Create component from components/Tasks/Create as CreateTask, and not as Create, because in future there can be many create components from different folders in App.jsx and that will lead to an error when there are more than one imports with the same name i.e. Create. More than that, visually, it provides us a better understanding of what the component creates since it's namespaced.

Now we are officially done.

So whenever we send a JSON response with a notice key or when we send full messages from Rails errors object in the error key of JSON response, then those notifications should show up.

The errors are handled in the handleErrorResponse function in axios.js.

These errors will be shown with an intent of error, which would make it popup in the red background.

Likewise, we can create even further intents like say Toastr.info, Toastr.warning etc.

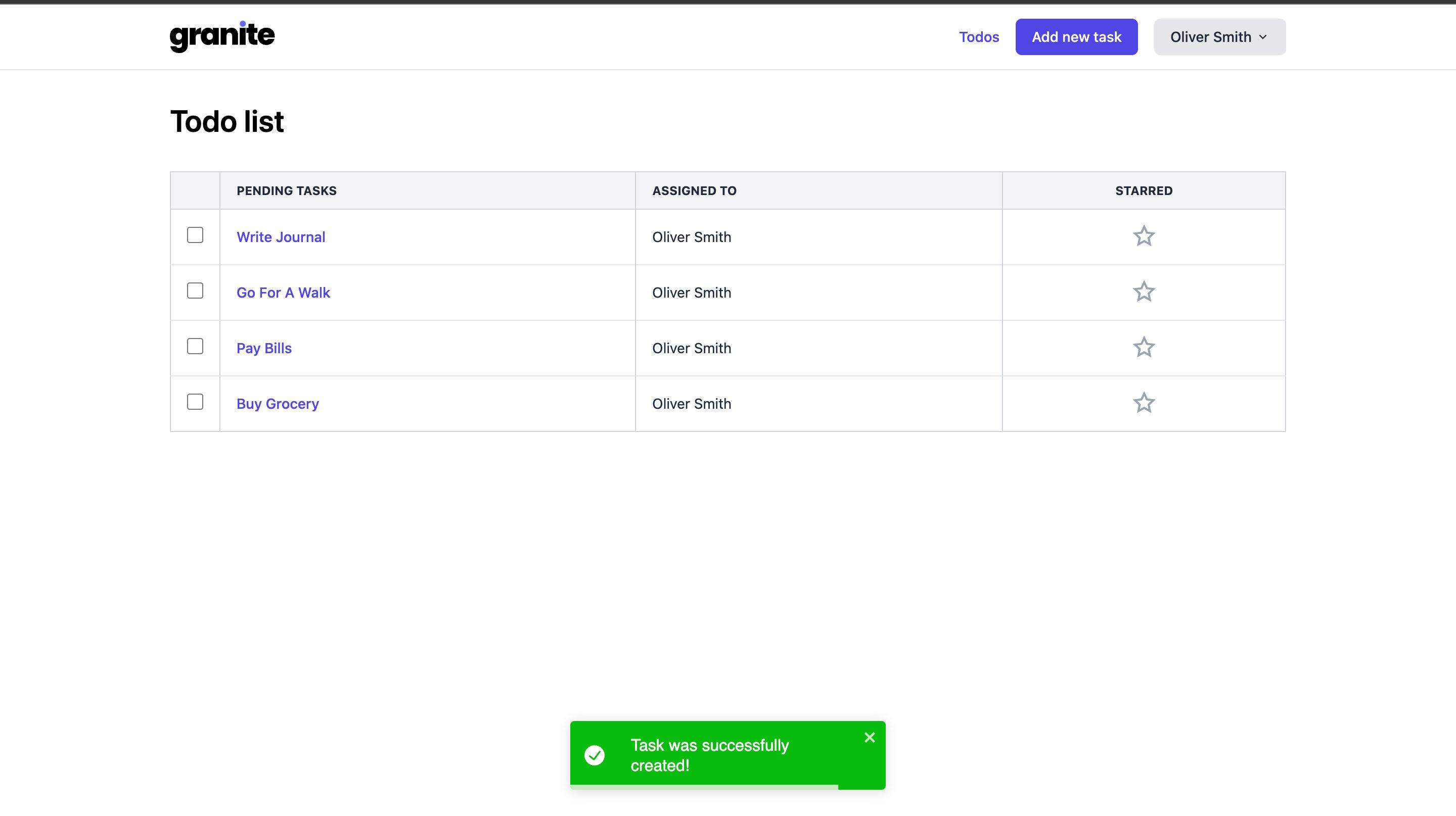

So just test it out, by say creating a new task.

We would be receiving a green colored notification if the task was successfully created.
